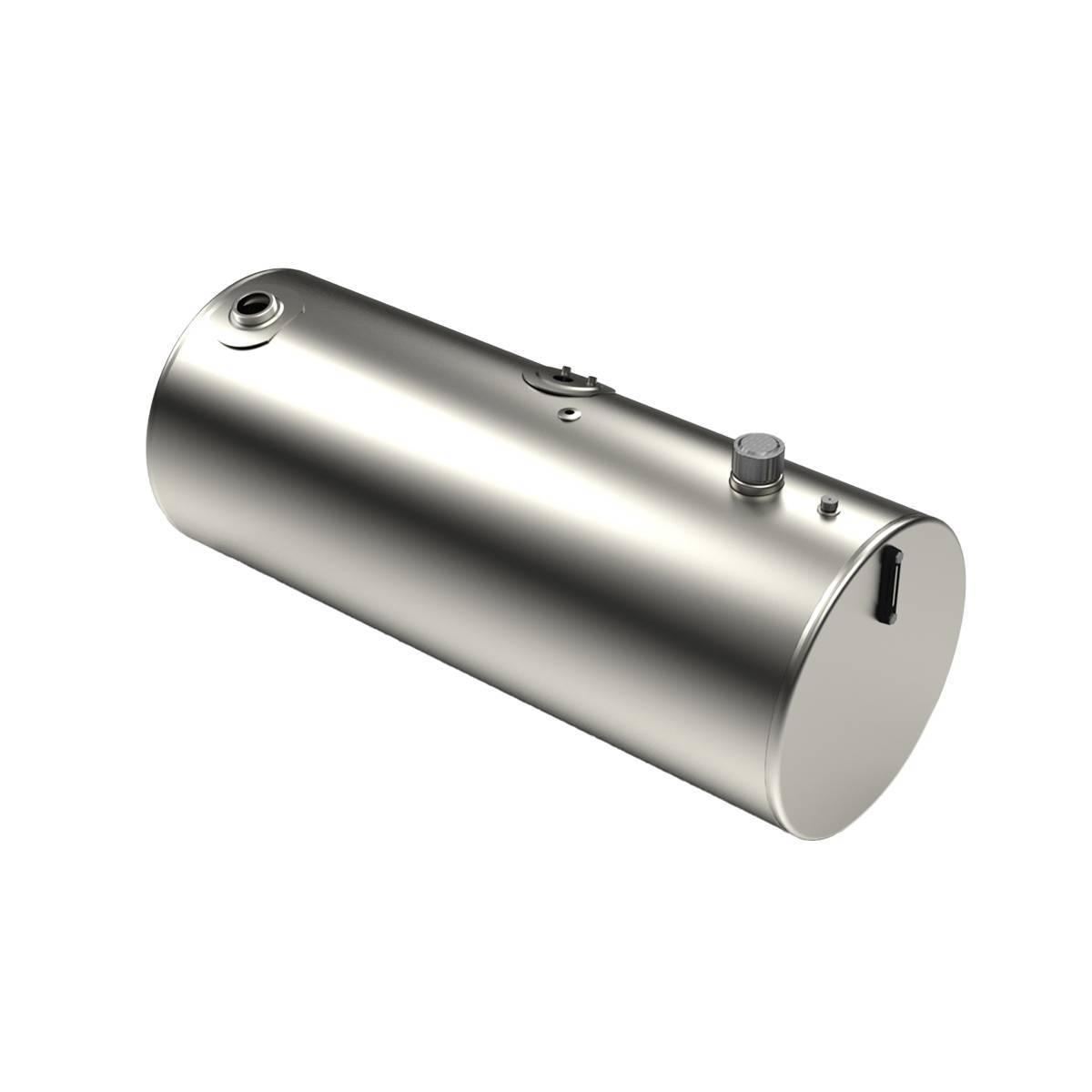

FUEL TANK 24 1/2" DIAMETER 62" LENGTH 81 GALLONS FUEL 40 GALLONS HYDRAULIC OIL PASSENGER SIDE FOR KENWORTH

- Split Tank
- 11 Gauge Aluminum
- Dimensions:
- 24.5 Diameter
- 62 Inches Overall Length
- Passenger Side
- Split 120 Gallon Capacity
- Fuel - 77 Gallons at 95% - Rear Fill
- Hydraulic Oil - 38 Gallons at 95% - Front Fill
- Measurements From Rear Weld Seam For Fuel Section
- Fuel Fill-Inlet 4.00 Inches
- New Style Manifold With Sender Hole And Tubes 30.00 Inches
- Vent Hole 0.500 Inch NPT At 34.00 Inches
- Oil Fill-Inlet 10.00 Inches
- Vent Hole 0.500 Inch NPT At 5.00 Inches
- Suction Line On Bottom Of Tank 1.250 Inch NPT At 7.50 Inches
- Return Line On Bottom Of Tank 1.250 Inch NPT At 12.50 Inches
- Has Sight Gauge On Front If Tank
- Welded Seams To Prevent Leakage
- CNC Laser Technology For Precision Cuts
- Sold Individually
- Warranty On Split Tanks Against Defects In Workmanship & Material From Date Of Purchase

- Aftermarket Replacement Part (Not OEM)


-Warranty: 2 Years
