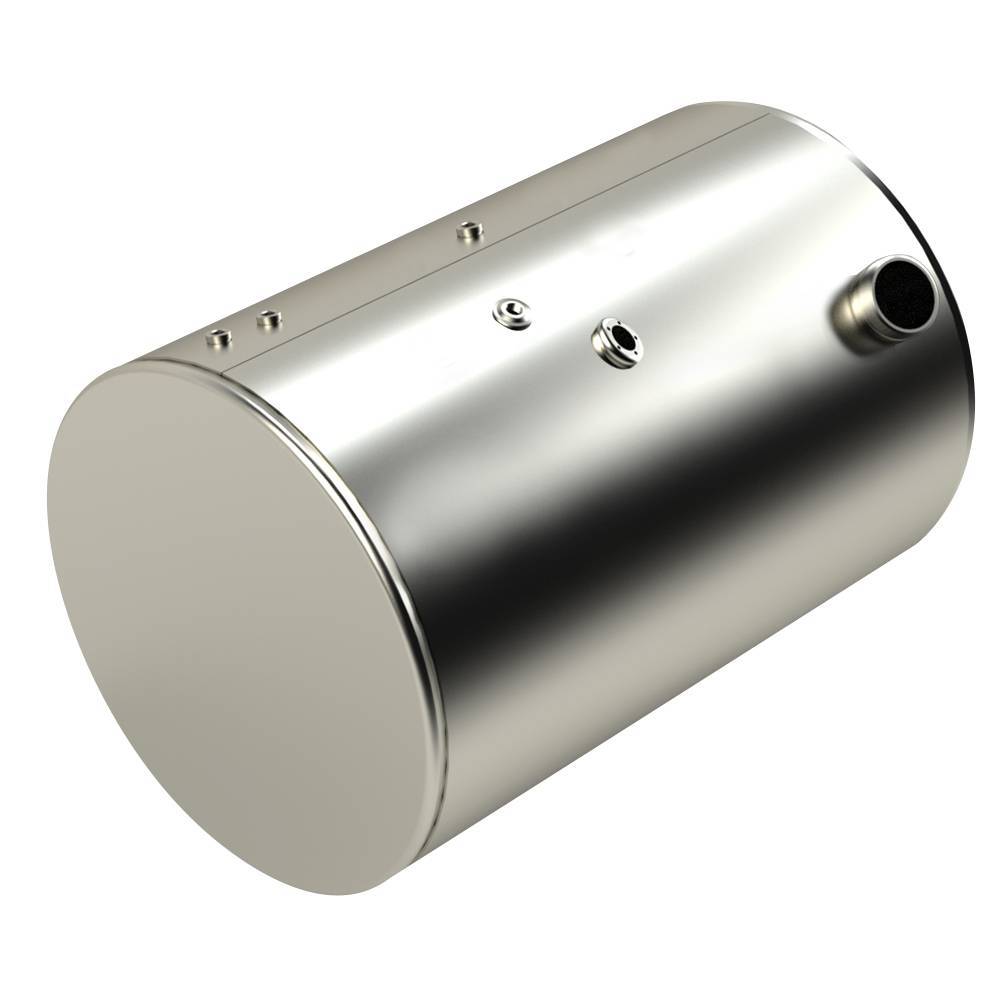

FUEL TANK 26" DIAMETER 38" LENGTH 80 GALLONS DRIVER SIDE REAR FILL FOR INTERNATIONAL PROSTAR 2011 - POST

- Fuel Tank
- 11 Gauge Aluminum
- Dimensions:
- 26 Inch Diameter
- 36 Inch Length Seam To Seam
- 38 Inch Overall Length
- Driver Side
- Gallons U.S. - 80
- Filler Neck - Rear Fill
- 32.00 Inches From Front Weld Seam
- 11.75 Inches Above Horizontal Weld Seam
- Without Sending Unit Hole
- Vent Hole
- 0.50 Inches NPT
- 15.00 Inches From Front Weld Seam
- 1.00 Inch Above Horizontal Weld Seam
- Pickup Port - Tubes Built In To Tank
- 10.00 Inches From Front Weld Seam
- 2.50 Inch Below Horizontal Weld Seam
- Return Port - Tubes Built In To Tank
- 22.00 Inches From Front Weld Seam
- 2.50 Inches Below Horizontal Weld Seam
- This Tank Has Metric Fittings On The Pickup And Return Tubes
- Caps And Fittings Sold Separately
- Welded Seams To Prevent Leakage
- CNC Laser Technology For Precision Cuts
- DOT Compliant
- Sold Individually
- Warranty On Fuel Tanks Against Defects In Workmanship & Material From Date Of Purchase

* - Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model **

***High Quality Aftermarket Replacement Part (Not OEM)

- Replaces OE Number 3907424C91


-Warranty: 2 Years
