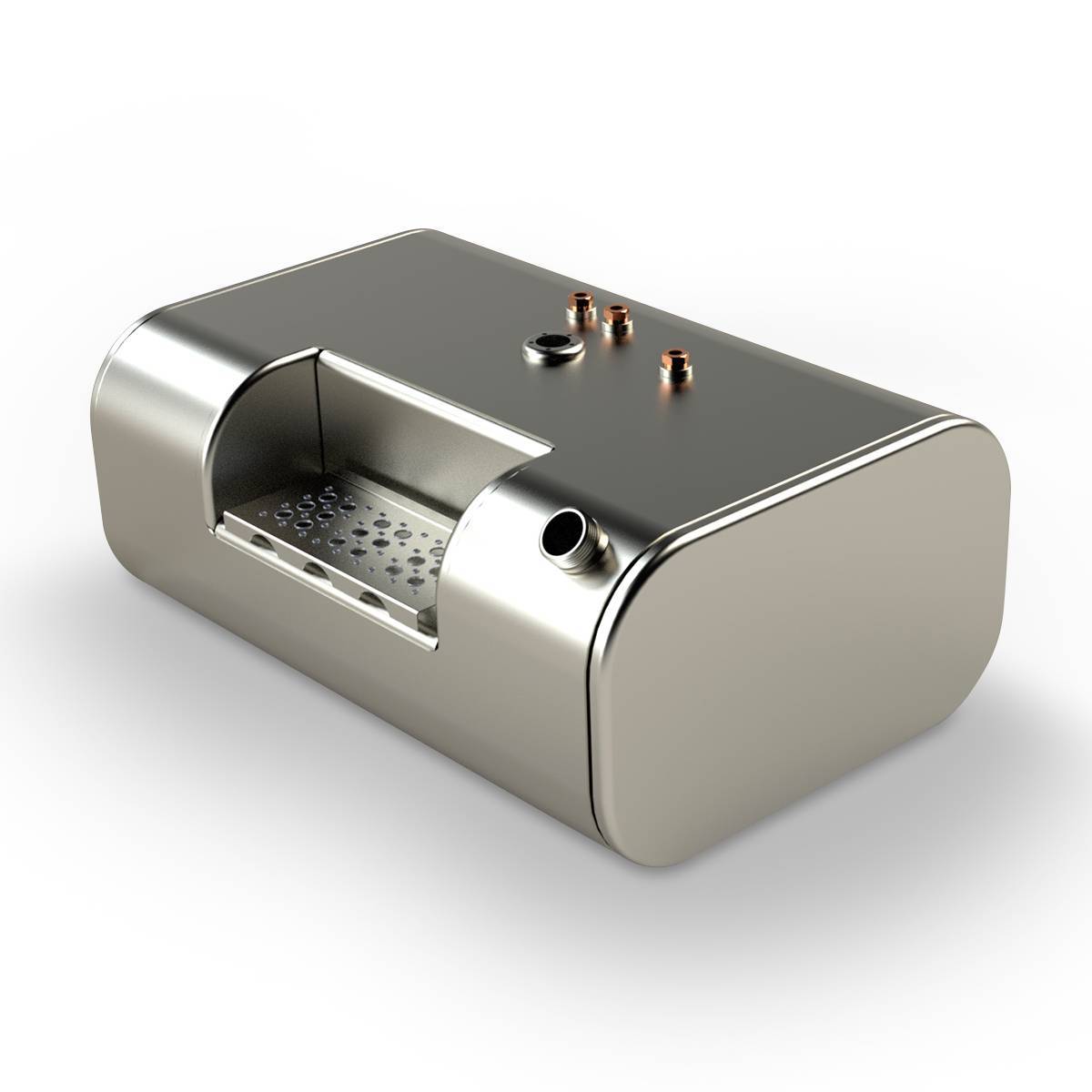

FUEL TANK 15" X 25" DIAMETER 37" LENGTH 60 GALLONS PASSENGER SIDE FRONT FILL INTEGRATED STEP FOR INTERNATIONAL 4700

- Fuel Tank
- Made Of 11 Gauge Aluminum
- Dimensions:
- 15 1/2 Inch Height
- 25 Inch Depth
- 38 Inch Overall Length
- Passenger Side
- 60 Gallon
- With Step
- 16.00 Inch Wide
- 6.50 Inch Deep
- Filler Neck - Front Fill
  - 2.50 Inch From Front Weld Seam
- Sending Unit Hole
  - 17.50 Inch From Rear Weld Seam
- Vent Hole
  - 0.50 Inch NPT
  - 14.00 Inch From Rear Weld Seam
- Pick Up Port
  - 17.50 Inch From Rear Weld Seam
- Return Port
  - 23.50 Inch From Rear Weld Seam
- Drains Or Cross Overs
  - 17.50 Inch From Rear Weld Seam
- Caps And Fittings Sold Separately, Not Included
- Pick Up And Return Tubes Included Inside Tank
- Welded Seams To Prevent Leakage
- CNC Laser Technology For Precision Cuts
- DOT Compliant
- Sold Individually
- Warranty On Fuel Tanks Against Defects In Workmanship & Material From Date Of Purchase

- Will Not Work With Internal Fuel Pump

* - Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model **

***High Quality Aftermarket Replacement Part (Not OEM)

* - Replaces OE Number 1661790C93


-Warranty: 2 Years
